Local Testing with ngrok

This guide shows you how to set up a local webhook testing environment using ngrok to receive and debug Interactly webhook events during development.

ngrok creates a secure tunnel to your local development server, making it accessible from the internet so Interactly can send webhook events to your local machine.

Prerequisites

Before getting started, make sure you have:

Python 3.7+ installed
ngrok account and installation (Download ngrok)
An Interactly assistant configured for testing

Setup Overview

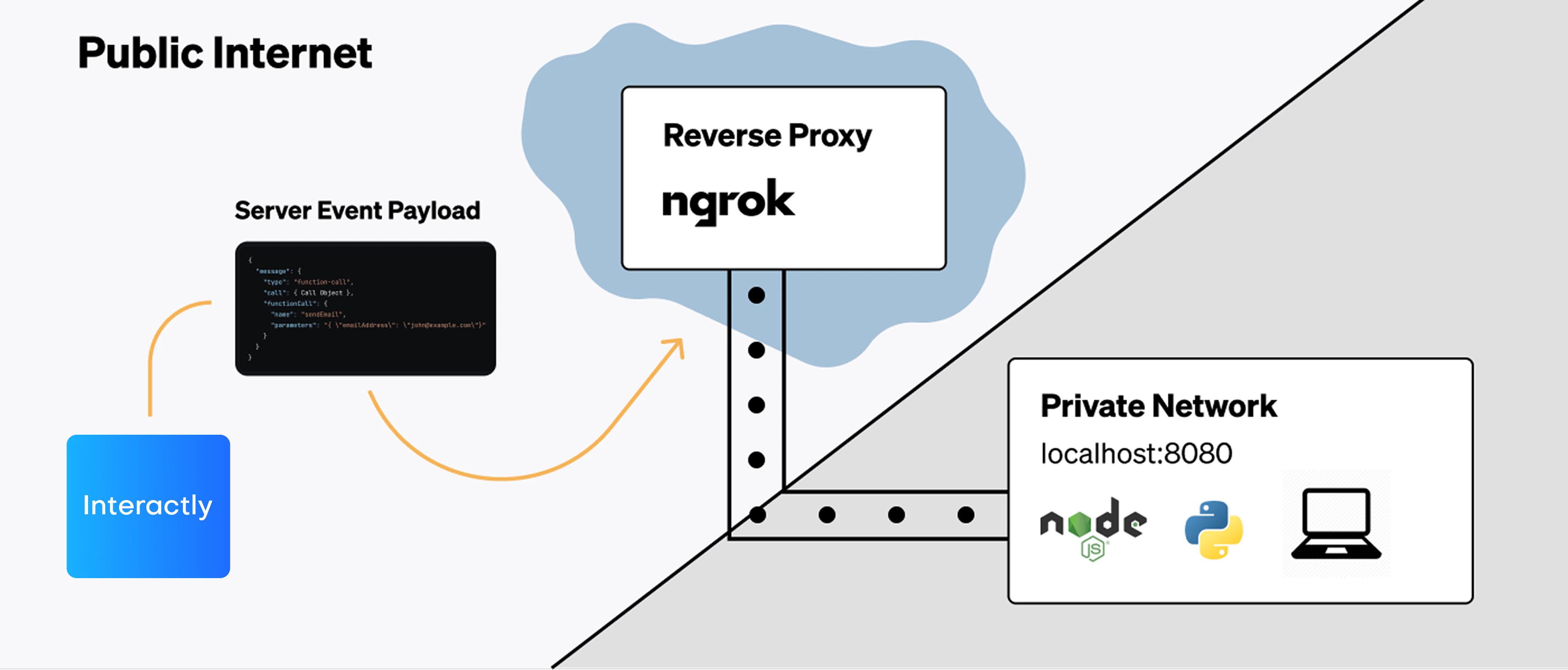

Overview of the local testing setup with ngrok and a Python webhook server.

Step 1: Install Dependencies

Create a new directory for your webhook testing server:

mkdir interactly-webhook-test
cd interactly-webhook-test

# Create virtual environment (recommended)
python -m venv webhook-env
source webhook-env/bin/activate  # On Windows: webhook-env\Scripts\activate

# Install required packages
pip install flask requests python-dotenv

# Create requirements.txt
echo "flask==2.3.3
requests==2.31.0
python-dotenv==1.0.0" > requirements.txt

# Install from requirements
pip install -r requirements.txt

Step 2: Create the Webhook Server

Create a file named webhook_server.py with the following code:

import json
import os
from datetime import datetime
from flask import Flask, request, jsonify
from dotenv import load_dotenv

# Load environment variables
load_dotenv()

app = Flask(__name__)

# Configuration
PORT = int(os.getenv('PORT', 5000))
SECRET = os.getenv('WEBHOOK_SECRET', '')

def log_event(event_type, data):
    """Log webhook event with timestamp"""
    timestamp = datetime.now().strftime('%Y-%m-%d %H:%M:%S')
    print(f"\n{'='*60}")
    print(f"[{timestamp}] WEBHOOK EVENT: {event_type}")
    print(f"{'='*60}")
    print(json.dumps(data, indent=2))
    print(f"{'='*60}\n")

def verify_webhook_secret(headers):
    """Verify webhook secret if configured"""
    if not SECRET:
        return True

    received_secret = headers.get('x-interactly-secret', '')
    if received_secret != SECRET:
        print(f"❌ Secret verification failed!")
        print(f"Expected: {SECRET}")
        print(f"Received: {received_secret}")
        return False
    print("✅ Secret verification passed")
    return True

@app.route('/webhook', methods=['POST'])
def handle_webhook():
    """Main webhook endpoint"""
    try:
        # Verify secret if configured
        if not verify_webhook_secret(request.headers):
            return jsonify({'error': 'Unauthorized'}), 401

        # Parse JSON payload
        data = request.get_json()
        if not data:
            return jsonify({'error': 'Invalid JSON'}), 400

        # Extract event type
        event_type = data.get('message', {}).get('type', 'unknown')
        call_id = data.get('message', {}).get('call', {}).get('id', 'unknown')

        # Log the event
        log_event(event_type, data)

        # Handle different event types
        handle_event_by_type(event_type, data)

        # Return success response
        return jsonify({
            'status': 'received',
            'event_type': event_type,
            'call_id': call_id,
            'timestamp': datetime.now().isoformat()
        }), 200

    except Exception as e:
        print(f"❌ Error processing webhook: {str(e)}")
        return jsonify({'error': 'Internal server error'}), 500

def handle_event_by_type(event_type, data):
    """Handle specific event types with custom logic"""
    call = data.get('message', {}).get('call', {})

    if event_type == 'status-update':
        status = call.get('status', 'unknown')
        duration = call.get('assistantCallDuration', 0)
        print(f"📞 Call Status: {status.upper()}")
        if duration > 0:
            print(f"⏱️  Duration: {duration/1000:.1f}s")

    elif event_type == 'conversation-update':
        messages = data.get('message', {}).get('messages', [])
        if messages:
            latest_msg = messages[-1]
            role = latest_msg.get('role', 'unknown')
            text = latest_msg.get('text', '')
            print(f"💬 {role.title()}: {text}")

    elif event_type == 'end-of-call-report':
        analysis = data.get('message', {}).get('analysis', {})
        summary = analysis.get('summary', 'No summary available')
        success = analysis.get('successEvaluation', 'Unknown')
        cost = call.get('cost', {}).get('totalCost', 0)

        print(f"📋 Call Summary: {summary}")
        print(f"✅ Success Rating: {success}")
        print(f"💰 Total Cost: ${cost:.4f}")

    elif event_type == 'hang':
        print("⏳ Assistant response delayed (5+ seconds)")

    elif event_type == 'error':
        error = data.get('message', {}).get('error', {})
        error_type = error.get('type', 'unknown')
        error_code = error.get('code', 'unknown')
        error_msg = error.get('message', 'No message')

        print(f"🚨 Error Type: {error_type}")
        print(f"🔍 Error Code: {error_code}")
        print(f"📝 Message: {error_msg}")

@app.route('/health', methods=['GET'])
def health_check():
    """Health check endpoint"""
    return jsonify({
        'status': 'healthy',
        'timestamp': datetime.now().isoformat(),
        'server': 'Interactly Webhook Test Server'
    })

@app.route('/', methods=['GET'])
def welcome():
    """Welcome page"""
    return """
    <h1>🎯 Interactly Webhook Test Server</h1>
    <p>Server is running and ready to receive webhooks!</p>
    <ul>
        <li><strong>Webhook Endpoint:</strong> <code>/webhook</code></li>
        <li><strong>Health Check:</strong> <a href="/health">/health</a></li>
        <li><strong>Method:</strong> POST</li>
    </ul>
    <p>Check your terminal for webhook event logs.</p>
    """

if __name__ == '__main__':
    print("🚀 Starting Interactly Webhook Test Server...")
    print(f"📡 Listening on port {PORT}")
    if SECRET:
        print(f"🔐 Secret verification enabled")
    else:
        print("⚠️  No secret configured (set WEBHOOK_SECRET in .env)")
    print(f"🌐 Webhook endpoint: /webhook")
    print("="*60)

    app.run(debug=True, port=PORT, host='0.0.0.0')

# Simplified version without dependencies
import json
from http.server import HTTPServer, BaseHTTPRequestHandler
from datetime import datetime

class WebhookHandler(BaseHTTPRequestHandler):
    def do_POST(self):
        if self.path == '/webhook':
            # Read the request body
            content_length = int(self.headers['Content-Length'])
            post_data = self.rfile.read(content_length)

            try:
                # Parse JSON
                data = json.loads(post_data.decode('utf-8'))
                event_type = data.get('message', {}).get('type', 'unknown')

                # Log the event
                timestamp = datetime.now().strftime('%Y-%m-%d %H:%M:%S')
                print(f"\n[{timestamp}] Received {event_type} event:")
                print(json.dumps(data, indent=2))
                print("-" * 50)

                # Send response
                self.send_response(200)
                self.send_header('Content-type', 'application/json')
                self.end_headers()

                response = {'status': 'received', 'event_type': event_type}
                self.wfile.write(json.dumps(response).encode())

            except json.JSONDecodeError:
                self.send_response(400)
                self.end_headers()
                self.wfile.write(b'Invalid JSON')
        else:
            self.send_response(404)
            self.end_headers()

    def do_GET(self):
        if self.path == '/':
            self.send_response(200)
            self.send_header('Content-type', 'text/html')
            self.end_headers()
            self.wfile.write(b'<h1>Webhook Server Running</h1><p>POST to /webhook</p>')
        elif self.path == '/health':
            self.send_response(200)
            self.send_header('Content-type', 'application/json')
            self.end_headers()
            self.wfile.write(b'{"status": "healthy"}')
        else:
            self.send_response(404)
            self.end_headers()

if __name__ == '__main__':
    server = HTTPServer(('0.0.0.0', 5000), WebhookHandler)
    print("🚀 Simple webhook server running on port 5000")
    print("📡 Webhook endpoint: http://localhost:5000/webhook")
    server.serve_forever()

Step 3: Configure Environment (Optional)

Create a .env file for configuration:

.env

# Webhook server configuration
PORT=5000

# Optional: Set a secret for webhook verification
WEBHOOK_SECRET=your-webhook-secret-here

# Optional: Webhook URL will be set after ngrok setup
WEBHOOK_URL=https://your-ngrok-url.ngrok.io/webhook

Step 4: Start ngrok Tunnel

Open a new terminal and start ngrok:

# Start ngrok tunnel to your webhook server
ngrok http 5000

# Use a custom subdomain (requires ngrok pro)
ngrok http 5000 --subdomain=myapp-webhooks

# Set auth token if not already configured
ngrok config add-authtoken YOUR_NGROK_AUTH_TOKEN
ngrok http 5000

You’ll see output like this:

ngrok by @inconshreveable

Session Status                online
Account                      your-email@example.com
Version                      3.1.0
Region                       United States (us)
Web Interface                http://127.0.0.1:4040
Forwarding                   https://abc123.ngrok.io -> http://localhost:5000

Connections                  ttl     opn     rt1     rt5     p50     p90
                            0       0       0.00    0.00    0.00    0.00

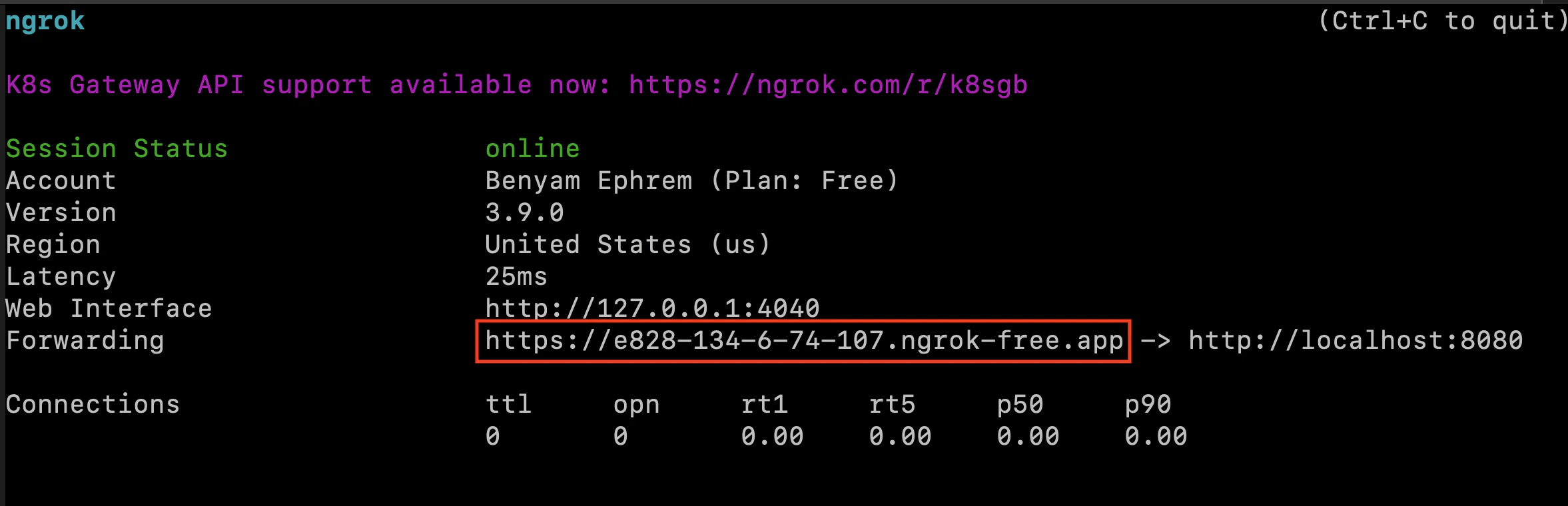

Terminal after running the 'ngrok' command forwarding to localhost:8080 — the 'Forwarding' URL is what we want.

Copy the ngrok URL: You’ll need the https://abc123.ngrok.io URL for the next step. This URL changes each time you restart ngrok (unless you have a paid plan with reserved domains).

Step 5: Start Your Webhook Server

In your first terminal, start the Python webhook server:

python webhook_server.py

python simple_webhook_server.py

You should see output like:

🚀 Starting Interactly Webhook Test Server...
📡 Listening on port 5000
⚠️  No secret configured (set WEBHOOK_SECRET in .env)
🌐 Webhook endpoint: /webhook
============================================================
 * Running on all addresses (0.0.0.0)
 * Running on http://127.0.0.1:5000
 * Running on http://[::1]:5000

Step 6: Configure Interactly Assistant

Now configure your Interactly assistant to use your ngrok webhook URL:

Via Dashboard UI

Go to your Interactly dashboard
Select your test assistant
Navigate to Advanced Tab
Scroll to Server Configuration
Fill in the webhook settings:

Field	Value
URL	`https://your-ngrok-url.ngrok.io/webhook`
Secret	`your-webhook-secret-here` (if using)
Messages	Select events to test: `status-update`, `conversation-update`, etc.

Via API

curl -X PATCH "https://api.interactly.ai/assistants/YOUR_ASSISTANT_ID" \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "assistantServer": {
      "enabled": true,
      "url": "https://your-ngrok-url.ngrok.io/webhook",
      "timeoutSeconds": 20,
      "secret": "your-webhook-secret-here",
      "headers": {
        "X-Test-Header": "webhook-testing"
      },
      "messages": [
        "status-update",
        "conversation-update",
        "end-of-call-report",
        "hang",
        "error"
      ]
    }
  }'

import requests

assistant_id = "YOUR_ASSISTANT_ID"
api_key = "YOUR_API_KEY"
ngrok_url = "https://your-ngrok-url.ngrok.io"

data = {
    "assistantServer": {
        "enabled": True,
        "url": f"{ngrok_url}/webhook",
        "timeoutSeconds": 20,
        "secret": "your-webhook-secret-here",
        "messages": [
            "status-update",
            "conversation-update",
            "end-of-call-report"
        ]
    }
}

response = requests.patch(
    f"https://api.interactly.ai/assistants/{assistant_id}",
    headers={
        "Authorization": f"Bearer {api_key}",
        "Content-Type": "application/json"
    },
    json=data
)

print(f"Assistant updated: {response.status_code}")

Step 7: Test Your Setup

Test the Webhook Endpoint

First, verify your webhook endpoint is accessible:

curl -X POST https://your-ngrok-url.ngrok.io/webhook \
  -H "Content-Type: application/json" \
  -d '{"test": "message"}'

Start a Test Call

Go to your Interactly dashboard
Start a test call with your configured assistant
Speak a few messages
End the call

Monitor the Logs

Watch your webhook server terminal for incoming events:

============================================================
[2026-03-05 14:23:15] WEBHOOK EVENT: status-update
============================================================
{
  "message": {
    "timestamp": 1772702523935,
    "type": "status-update",
    "call": {
      "id": "WC-82015760-c3bd-427d-a23b-ba9b07e4ab85",
      "status": "queued",
      ...
    }
  }
}
============================================================

📞 Call Status: QUEUED

Advanced Testing Features

Event Filtering and Analysis

Add custom filtering to focus on specific events:

# Add to webhook_server.py

FILTERED_EVENTS = ['conversation-update', 'end-of-call-report']

@app.route('/webhook', methods=['POST'])
def handle_webhook():
    data = request.get_json()
    event_type = data.get('message', {}).get('type')

    # Skip filtered events
    if FILTERED_EVENTS and event_type not in FILTERED_EVENTS:
        return jsonify({'status': 'filtered'}), 200

    # Process event...

Save Events to File

Store webhook events for later analysis:

import json
from pathlib import Path

def save_event_to_file(event_type, data):
    """Save webhook events to JSON files"""
    timestamp = datetime.now().strftime('%Y%m%d_%H%M%S')
    filename = f"webhook_events/{event_type}_{timestamp}.json"

    # Create directory if it doesn't exist
    Path("webhook_events").mkdir(exist_ok=True)

    with open(filename, 'w') as f:
        json.dump(data, f, indent=2)

    print(f"💾 Saved event to {filename}")

Metrics Collection

Track webhook statistics:

from collections import defaultdict

class WebhookMetrics:
    def __init__(self):
        self.event_counts = defaultdict(int)
        self.start_time = datetime.now()

    def record_event(self, event_type):
        self.event_counts[event_type] += 1

    def get_stats(self):
        uptime = datetime.now() - self.start_time
        return {
            'uptime_seconds': uptime.total_seconds(),
            'events_received': dict(self.event_counts),
            'total_events': sum(self.event_counts.values())
        }

# Usage in webhook handler
metrics = WebhookMetrics()

@app.route('/metrics', methods=['GET'])
def get_metrics():
    return jsonify(metrics.get_stats())

Troubleshooting

Common Issues

Issue	Solution
ngrok tunnel inactive	Restart ngrok with `ngrok http 5000`
Webhook not receiving events	Check assistant configuration and ngrok URL
Secret verification failed	Ensure secret matches in both .env and assistant config
JSON decode errors	Verify Content-Type header and request format
Port already in use	Change PORT in .env or kill existing process

Debug Mode

Add debug logging to your webhook server:

import logging

logging.basicConfig(
    level=logging.DEBUG,
    format='%(asctime)s - %(levelname)s - %(message)s'
)

@app.route('/webhook', methods=['POST'])
def handle_webhook():
    app.logger.debug(f"Headers: {dict(request.headers)}")
    app.logger.debug(f"Body: {request.get_data()}")
    # ... rest of handler

ngrok Web Interface

Visit http://localhost:4040 to see:

Request/response logs
Traffic inspection
Tunnel status
Error diagnostics

Production Considerations

When moving from testing to production:

Use HTTPS: Always use HTTPS endpoints in production
Implement Authentication: Use webhook secrets and additional security
Add Rate Limiting: Protect against excessive webhook calls
Error Handling: Implement robust error handling and recovery
Monitoring: Add proper logging and alerting
Idempotency: Handle duplicate events gracefully

Next Steps

Once your local testing is working, deploy your webhook server to a production environment and update your assistant configuration with the production URL.

General

Quickstart

Calls

Campaigns

Workflows

Assistant Tools

Webhooks

Vendors

Prompts

Prerequisites

Setup Overview

Step 1: Install Dependencies

Step 2: Create the Webhook Server

Step 3: Configure Environment (Optional)

Step 4: Start ngrok Tunnel

Step 5: Start Your Webhook Server

Step 6: Configure Interactly Assistant

Via Dashboard UI

Via API

Step 7: Test Your Setup

Test the Webhook Endpoint

Start a Test Call

Monitor the Logs

Advanced Testing Features

Event Filtering and Analysis

Save Events to File

Metrics Collection

Troubleshooting

Common Issues

Debug Mode

ngrok Web Interface

Production Considerations

Next Steps

​Prerequisites

​Setup Overview

​Step 1: Install Dependencies

​Step 2: Create the Webhook Server

​Step 3: Configure Environment (Optional)

​Step 4: Start ngrok Tunnel

​Step 5: Start Your Webhook Server

​Step 6: Configure Interactly Assistant

​Via Dashboard UI

​Via API

​Step 7: Test Your Setup

​Test the Webhook Endpoint

​Start a Test Call

​Monitor the Logs

​Advanced Testing Features

​Event Filtering and Analysis

​Save Events to File

​Metrics Collection

​Troubleshooting

​Common Issues

​Debug Mode

​ngrok Web Interface

​Production Considerations

Next Steps

Prerequisites

Setup Overview

Step 1: Install Dependencies

Step 2: Create the Webhook Server

Step 3: Configure Environment (Optional)

Step 4: Start ngrok Tunnel

Step 5: Start Your Webhook Server

Step 6: Configure Interactly Assistant

Via Dashboard UI

Via API

Step 7: Test Your Setup

Test the Webhook Endpoint

Start a Test Call

Monitor the Logs

Advanced Testing Features

Event Filtering and Analysis

Save Events to File

Metrics Collection

Troubleshooting

Common Issues

Debug Mode

ngrok Web Interface

Production Considerations
